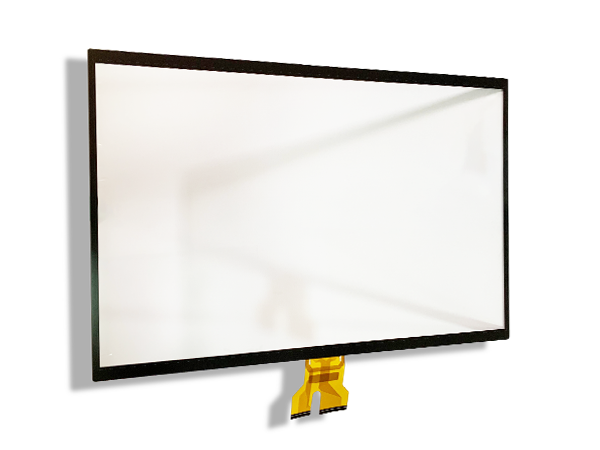

PCAP 23.8" Touch Module

Share:
General Description

The TP-238P0A0CW-001 is a Projected Capacitive touch panel, it supports 10 points multi-touch.
It is bonded with a 1.8mm, 7H hardness, Soda-lime Tempered cover lens, complies IK rating 07.
The structure of TP-238P0A0CW-001 is “G/G”, optional AG coating.
It is designed by Nextech Co.,Ltd.


Specifications
Type of Touch Technology Projected Capacitive
Input Method Finger or Nextech active touch stylus.
Average Transmittance >85%
Accuracy 2.5mm each target, 10% Jitter
Interface USB
Dimensions
Outline of Cover Lens 544.00x326.00(±0.3) mm
Dimensions of Sensor 542.64x316.46(±0.3) mm
Viewing Area 528.24x297.86(±0.3) mm
Active Area 530.64x300.46(±0.3) mm
Thickness of Cover Lens 1.8(±0.2) mm
Total Thickness 2.75(±0.2) mm
Environmental Characteristic Temperature Humidity
Operating -20~70℃ 0~90%RH
Storage -30~80℃ 0~90%RH

Product Specifications
TP-238P0A0CW-001 English Version
