| Features |
|---|
★ 23.8" Industrial Grade Panel, 16:9/1920x1080 (FHD) Resolution
★ AHVA Wide Viewing Angle Technology (178°/178°)
★ Intel® 11th Generation Core i Series CPU
★ DDR4 8G RAM (Max. 32G)
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports NEXTECH Dedicated Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional AG Coating/Antibacterial/Privacy Filter Surface Treatment
| System Specifications | |
|---|---|
| CPU | Intel® 11 th Generation Core i Series CPU |
| Memory | DDR4 SO DIMM x2, Max. 64 G |
| Storage | Ultra Fast M.2 with PCIe Gen3 x2, SATA 6Gb/s x1 |
| GPU Chip | Intel® UHD Graphics |
| Sound Chip | Realtek® Audio CODEC |
| Network | Intel Gigabit LAN, RJ45 ports x2 |
| Display Specification | |
|---|---|
| Panel Process | VA Mode, Normally Black |
| Display Size |
23.8 inch |
| Visible Area | 527.04x296.46 mm |
| Resolution | 1920x1080 (FHD) |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 400 / (Optional) 1000 / (Optional) 1500 nits |
| Contrast Ratio | 1000:1 |
| Pixel Pitch | 274.5x274.5 um |
| Response Time | 16 msec. |
| Viewing Angle | 178°/178° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >30000 hours |
| Operating Temp. | 0°~50°C |
| Storage Temp. | -20°~60°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 2.9±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|
Open Frame Brackets |
Wall Mount Kits |
IP65 Waterproof Protection Front Frame |
Wall Mount Bracket |

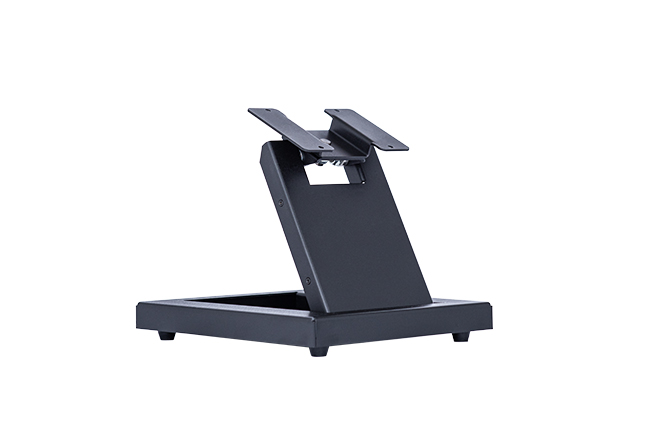

Desktop Stand B type |
Desktop Stand Z type |
Passive Stylus |
 |
