17" Panel PC ( intel Core i3/i5/i7 )

Share:
Features

★ 17 inch Industrial Grade Panel, 1280x1024 Resolution
★ Operating Temperature Range -30~85°C
★ Intel® 11th Generation Core i Series CPU
★ DDR4 8G RAM (Max. 64G)
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports Nextech Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty , Designed for Harsh Environments
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional AG Coating/ Antibacterial /Privacy Filter Surface Treatment


System Specifications
CPU Intel® 11th Generation Core i Series CPU
Memory DDR4 SO-DIMM x2, Max. 64G
Storage Ultra-Fast M.2 with PCIe Gen3 x2, SATA 6Gb/s x1
GPU Chip Intel® HD Graphics 500
Sound Chip Realtek® Audio CODEC
Network Intel Gigabit LAN, RJ45 ports x2
Display Specification
Panel Process TN Type, Normally Black
Display Size

17 inch

Visible Area 337.9x270.3 mm
Resolution 1280x1024
Color Depth 16.7M Colors
Brightness (nits) 350 / (Optional) 1000 / (Optional) 1500 nits
Contrast Ratio 800:1
Display Ratio 4:3
Pixel Pitch 264x264 um
Response Time 30 msec.
Viewing Angle 80°/80°/60°/80°
Backlight LED (white LED)
Backlight Lifetime >50000 hours
Operating Temp. -30°~85°C
Storage Temp. -30°~85°C
Touch Specification
Touch Technology Projected Capacitive
Allowed Touch Points 10 points
Thickness of Cover Lens  2.0±0.2mm
Hardness of Cover Lens 7H
Accuracy 99.00%
Transparency ≧87%
IK Ratings IK07
Optional Accessories
Open Frame Brackets
ALL_catalog_24B07_J38uIagPRd
Wall Mount Kits
ALL_catalog_24B07_QSal7cfUvr
Passive Stylus
ALL_catalog_24B07_eZj5vSxbi4

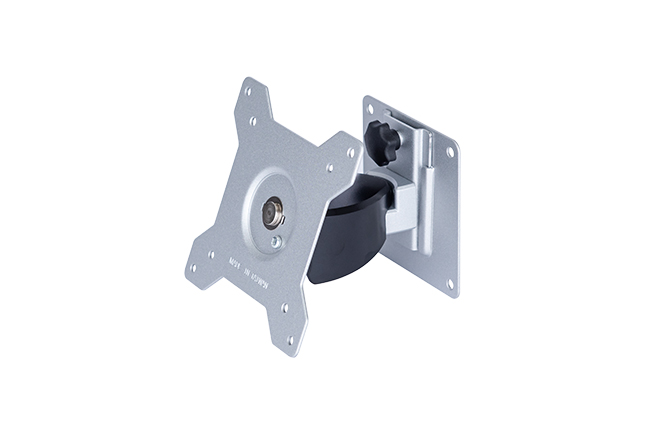

Wall Mount Bracket
ALL_catalog_24B07_JBcA4klMlI
IP65 Waterproof Protection Front Frame
ALL_catalog_24B07_eZj5vSxbi4
Desktop Stand B type
ALL_catalog_24B07_JBcA4klMlI
Desktop Stand Z type
ALL_catalog_24B19_9VHYTHbtZM

ALL_catalog_24B19_N2Ak4o05Tt
