| Features |
|---|

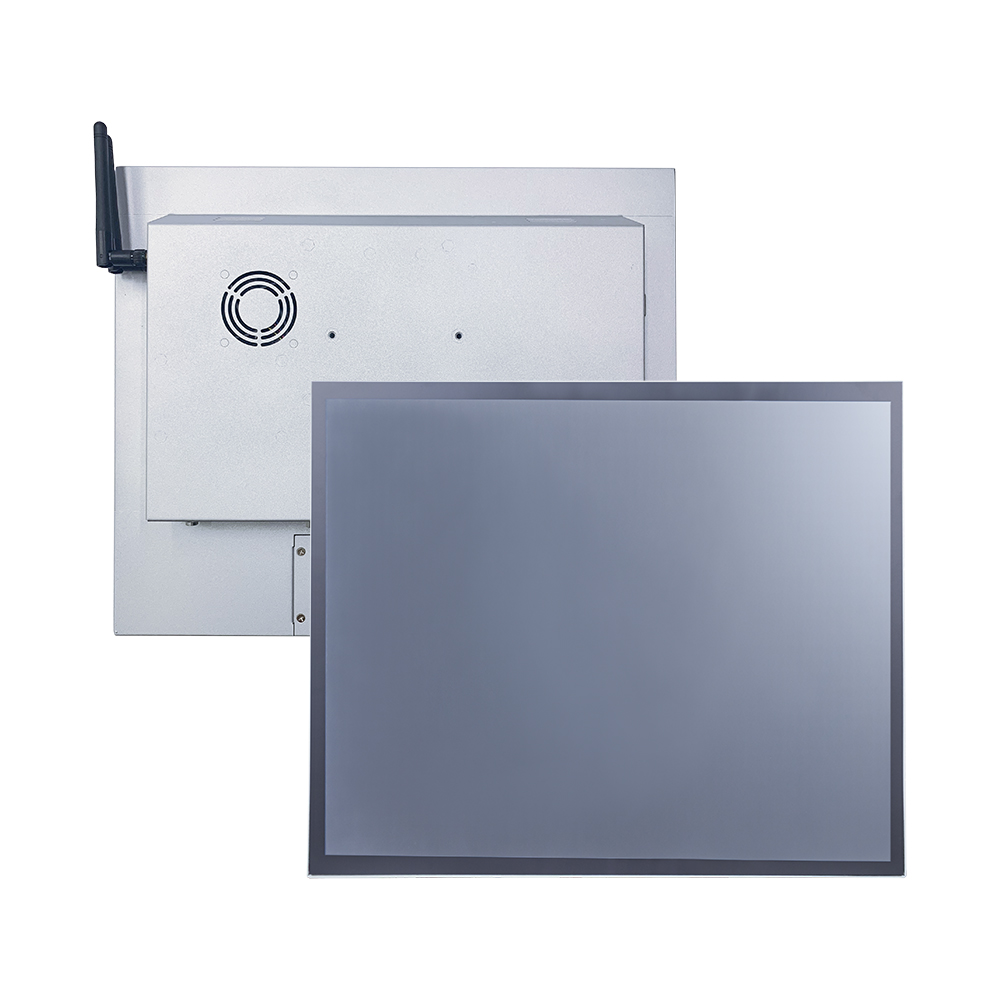

★ 17 inch Industrial Grade Panel, 1280x1024 Resolution
★ Operating Temperature Range -30~85°C
★ Intel® Quad-Core N3350/N4200 CPU
★ DDR3 8G DRAM
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports Nextech Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty , Designed for Harsh Environments
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional AG Coating/ Antibacterial /Privacy Filter Surface Treatment
| System Specifications | |
|---|---|
| CPU | Intel® Celeron/Pentium Processor |
| Memory | DDR3 SO-DIMM 8G |
| Storage | SATAx1, M.2 M-key (SATA 6Gb/s) x1, Full-size Mini PCIe Slot x1 |
| GPU Chip | Intel® HD Graphics 500 |
| Sound Chip | Realtek® Audio CODEC |
| Network | Intel® i211AT Gbe LAN Chips x2 |
| Display Specification | |
|---|---|
| Panel Process | TN Type, Normally Black |
| Display Size |
17 inch |
| Visible Area | 337.9x270.3 mm |
| Resolution | 1280x1024 |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 350 / (Optional) 1000 / (Optional) 1500 nits |
| Contrast Ratio | 800:1 |
| Display Ratio | 4:3 |
| Pixel Pitch | 264x264 um |
| Response Time | 30 msec. |
| Viewing Angle | 80°/80°/60°/80° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >50000 hours |
| Operating Temp. | -30°~85°C |
| Storage Temp. | -30°~85°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 2.0±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|
Open Frame Brackets |
Wall Mount Kits |
Passive Stylus |
Wall Mount Bracket |
IP65 Waterproof Protection Front Frame |
Desktop Stand B type |
Desktop Stand Z type |
 |
