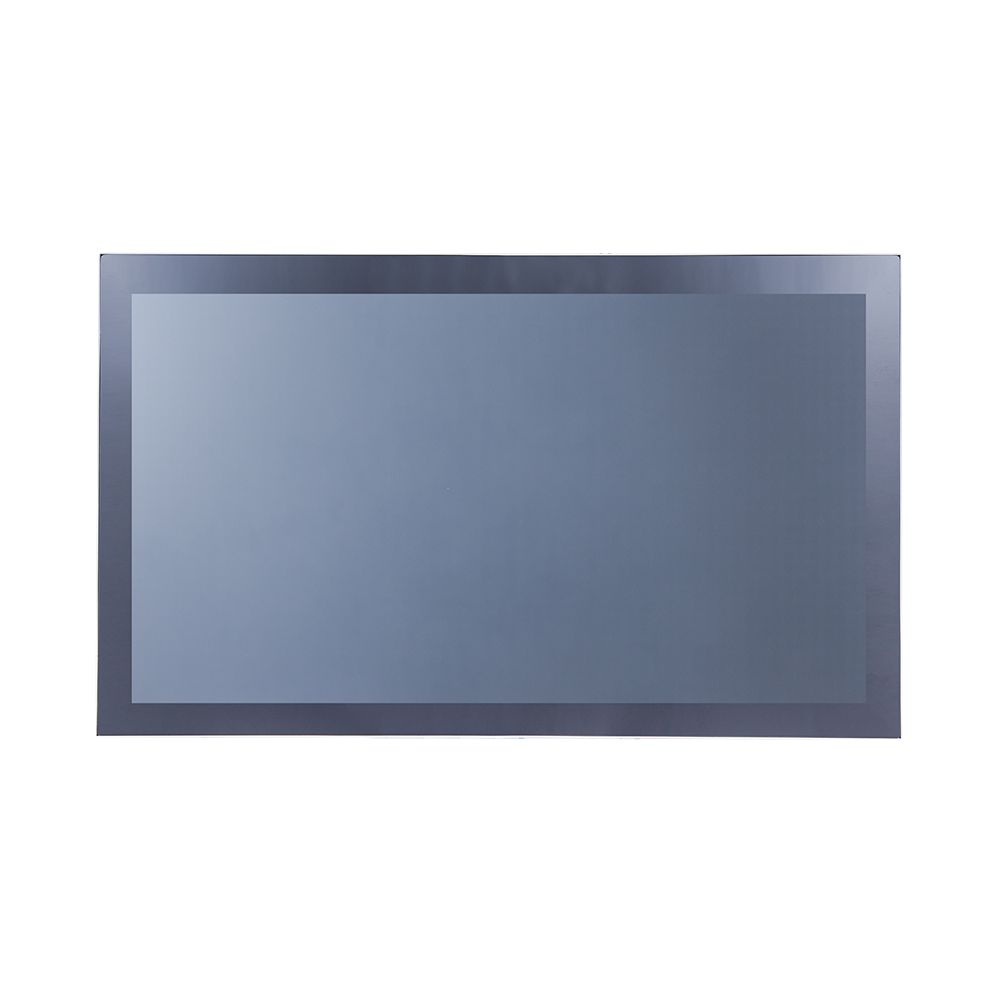

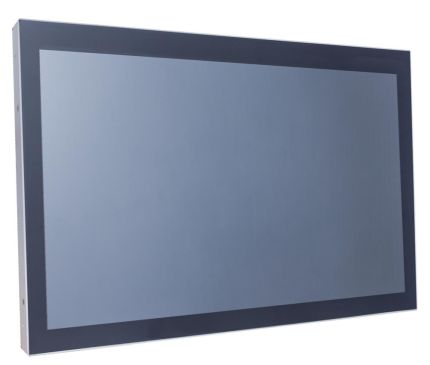

13.3" Panel PC ( intel Core i3/i5/i7 )

Share：
Add to inquiry
Features

★ 13.3 inch Industrial Grade Panel, 1920x1080 (FHD) Resolution
★ AHVA Wide Viewing Angle Technology, 178°/178°
★ Operating Temperature Range -20~70°C
★ Intel® 11th Generation Core i Series CPU
★ DDR4 8G RAM (Max. 64G)
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports Nextech Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional AG Coating/ Antibacterial /Privacy Filter Surface Treatment


System Specifications
CPU Intel® 11th Generation Core i Series CPU
Memory DDR4 SO-DIMM x2, Max. 64G
Storage Ultra-Fast M.2 with PCIe Gen3 x2, SATA 6Gb/s x1
GPU Chip Intel® UHD Graphics
Sound Chip Realtek® Audio CODEC
Network Intel Gigabit LAN, RJ45 ports x2
Display Specification
Panel Process AHVA Mode
Display Size

13.3 inch
Visible Area 293.47x165.07 mm
Resolution 1920x1080 (FHD)
Color Depth 16.7M Colors
Brightness (nits) 400 / (Optional) 1000 / (Optional) 1500 nits
Contrast Ratio 1000:1
Display Ratio 16:9
Pixel Pitch 0.15285x0.15285 mm
Response Time 25 msec.
Viewing Angle 178°/178°
Backlight LED (white LED)
Backlight Lifetime >50000 hours
Operating Temp. -20°~70°C
Storage Temp. -20°~70°C
Touch Specification
Touch Technology Projected Capacitive
Allowed Touch Points 10 points
Thickness of Cover Lens  2.0±0.2mm
Hardness of Cover Lens 7H
Accuracy 99.00%
Transparency ≧87%
IK Ratings IK07
Optional Accessories
Open Frame Brackets
ALL_catalog_24B07_J38uIagPRd		 Wall Mount Kits
ALL_catalog_24B07_QSal7cfUvr
Mounting Plate
ALL_catalog_24B07_eZj5vSxbi4		 Wall Mount Bracket
ALL_catalog_24B07_JBcA4klMlI
IP65 Waterproof Protection Front Frame
ALL_catalog_24B07_eZj5vSxbi4		 Desktop Stand L type
ALL_catalog_24B07_JBcA4klMlI
Desktop Stand B type
ALL_catalog_24B19_9VHYTHbtZM
ALL_catalog_24B19_N2Ak4o05Tt
