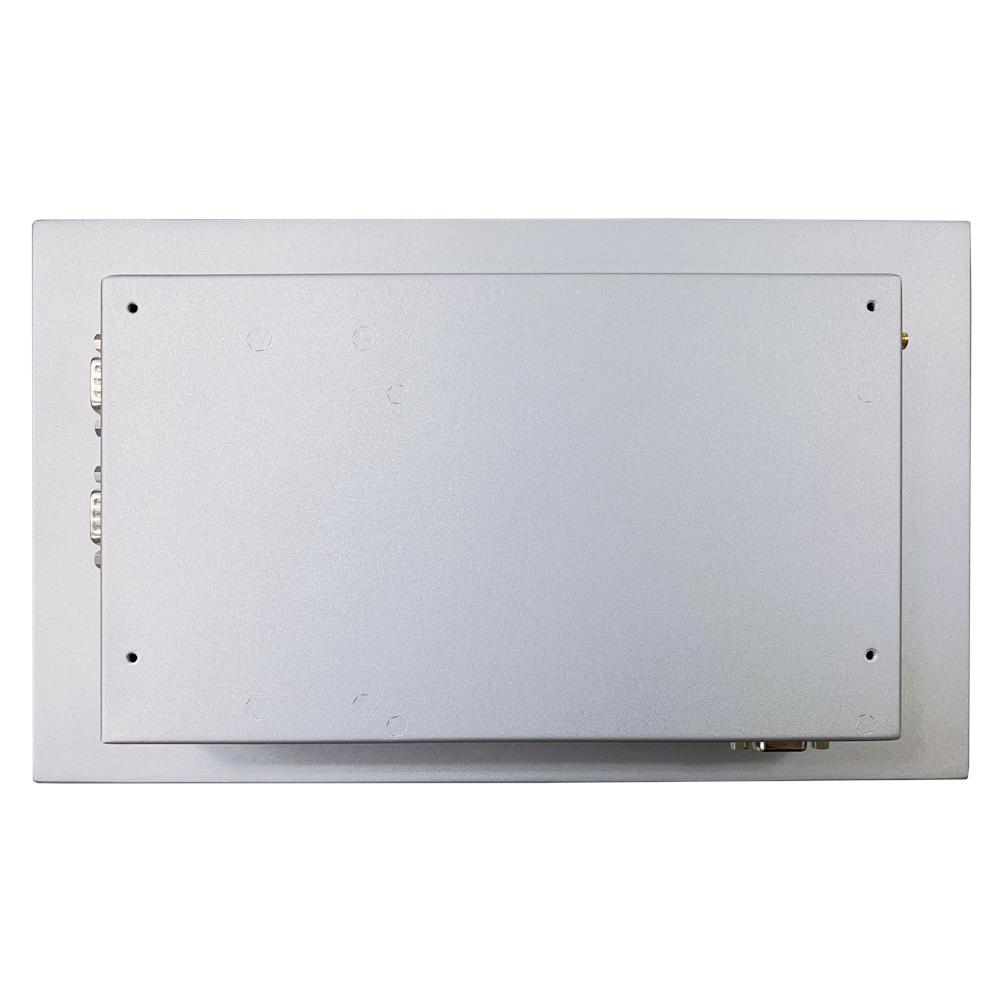

13.3" Panel PC ( Intel N3350/4200 )

Share：
Add to inquiry
Features

★ 13.3 inch Industrial Grade Panel, 1920x1080 (FHD) Resolution
★ AHVA Wide Viewing Angle Technology, 178°/178°
★ Operating Temperature Range -20~70°C
★ Intel® Quad Core N3350/N4200 CPU
★ DDR3 8G DRAM
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports Nextech Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional AG Coating/ Antibacterial /Privacy Filter Surface Treatment


System Specifications
CPU Intel® Celeron/Pentium Processor
Memory DDR3 SO-DIMM 8G
Storage SATAx1, M.2 M-key (SATA 6Gb/s) x1, Full-size Mini PCIe Slot x1
GPU Chip Intel® HD Graphics 500
Sound Chip Realtek® Audio CODEC
Network Intel® i211AT Gbe LAN Chips x2
Display Specification
Panel Process AHVA Mode
Display Size

13.3 inch
Visible Area 293.47x165.07 mm
Resolution 1920x1080 (FHD)
Color Depth 16.7M Colors
Brightness (nits) 400 / (Optional) 1000 / (Optional) 1500 nits
Contrast Ratio 1000:1
Display Ratio 16:9
Pixel Pitch 0.15285x0.15285 mm
Response Time 25 msec.
Viewing Angle 178°/178°
Backlight LED (white LED)
Backlight Lifetime >50000 hours
Operating Temp. -20°~70°C
Storage Temp. -20°~70°C
Touch Specification
Touch Technology Projected Capacitive
Allowed Touch Points 10 points
Thickness of Cover Lens  2.0±0.2mm
Hardness of Cover Lens 7H
Accuracy 99.00%
Transparency ≧87%
IK Ratings IK07
Optional Accessories
Open Frame Brackets
ALL_catalog_24B07_J38uIagPRd		 Wall Mount Kits
ALL_catalog_24B07_QSal7cfUvr
Mounting Plate
ALL_catalog_24B07_eZj5vSxbi4		 Wall Mount Bracket
ALL_catalog_24B07_JBcA4klMlI
IP65 Waterproof Protection Front Frame
ALL_catalog_24B07_eZj5vSxbi4		 Desktop Stand L type
ALL_catalog_24B07_JBcA4klMlI
Desktop Stand B type
ALL_catalog_24B19_9VHYTHbtZM
ALL_catalog_24B19_N2Ak4o05Tt
