| Features |
|---|
★ 10.1 inch Wide Industrial Grade Panel, 1280x800 Resolution
★ AHVA Wide Viewing Angle Technology, (178°/178°)
★ Operating Temperature Range -20~60°C
★ Intel® Quad-Core N3350/N4200 CPU
★ DDR3 8G DRAM
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional AG Coating/Antibacterial/Privacy Filter Surface Treatment
| System Specifications | |
|---|---|
| CPU | Intel® Celeron/Pentium Processor |
| Memory | DDR3 SO-DIMM 8G |
| Storage | SATAx1, M.2 M-key (SATA 6Gb/s) x1, Full-size Mini PCIe Slot x1 |
| GPU Chip | Intel® HD Graphics 500 |
| Sound Chip | Realtek® Audio CODEC |
| Network | Intel® i211AT Gbe LAN Chips x2 |
| Display Specification | |
|---|---|
| Panel Process | AHVA Mode, Normally White |
| Display Size |
10.1 inch |
| Visible Area | 216.96x135.6 mm |
| Resolution | 1280x800 |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 400 nits |
| Contrast Ratio | 800:1 |
| Display Ratio | 16:10 |
| Pixel Pitch | 0.1695x0.1695 mm |
| Response Time | 29 msec. |
| Viewing Angle | 178°/178° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >30000 hours |
| Operating Temp. | -20°~60°C |
| Storage Temp. | -20°~60°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 1.1±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|
Open Frame Brackets |
Wall Mount Kits |
Mounting Plate |
Wall Mount Bracket |

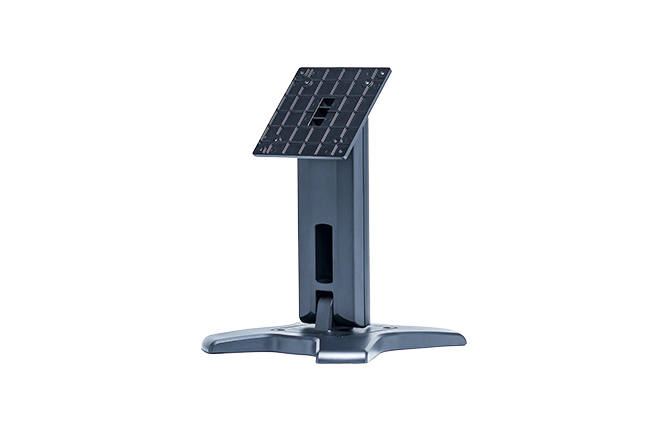

Desktop Stand B type |
Desktop Stand L type |
IP65 Waterproof Protection Front Frame |
 |
| Product Specifications |
|---|
| NTWP101 V502E English Version |
| NTWP101 V502E Traditional Chinese Version |
| NTWP101 V502E Japanese Version |
