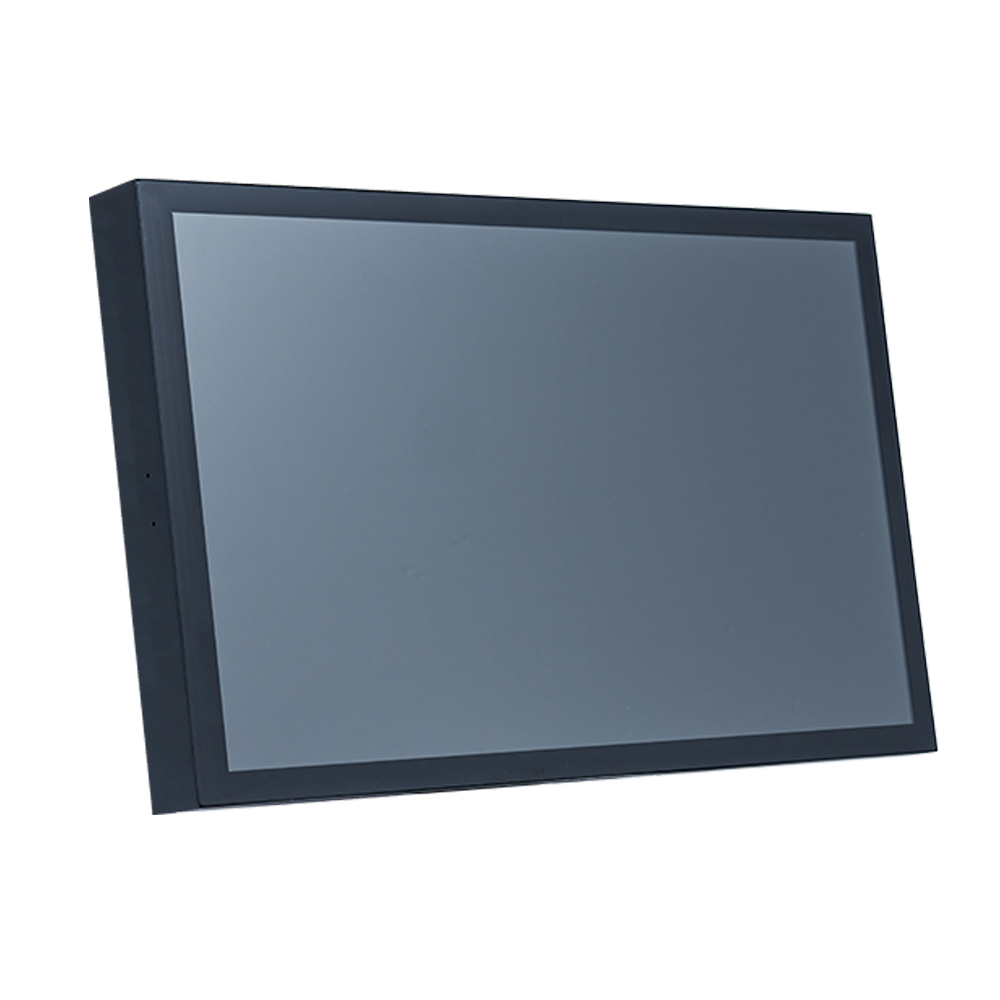

P Series 55" PCAP Touch Monitor**

Share:
Features

★ 55 inch Panel, 4K (UHD) Resolution
★ VA Technology, Wide Viewing Angle (178°/178°)
★ True Flat Projected Capacitive Touch Screen
★ Anti-Glare Coating, 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch , Supports NEXTECH Stylus.
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty
★ Optional Software Remote Control by RS232
★ Optional High Brightness 700nits
★ Optional Auto Dimming Function (with Light Sensor)


Display Specification
Panel Process VA Type, Normally Black
Display Size 55 inch
Visible Area 1209.6x680.4 mm
Resolution 3840x2160 (UHD)
Display Ratio 16:9
Color Depth 1070M Colors
Brightness (nits) 500 / 700 nits (Optional)
Contrast Ratio 4000:1
Pixel Pitch 0.3637x0.3637 mm
Response Time 8.5 msec.
Viewing Angle 178°/178°
Backlight LED (white LED)
Backlight Lifetime >50000 HRS
Operating Temp. 0°~50°C
Storage Temp. -20°~60°C
Touch Specification
Touch Technology Projected Capacitive
Allowed Touch Points 10 points
Thickness of Cover Lens  2.9±0.2mm
Hardness of Cover Lens 7H
Accuracy 99.00%
Transparency ≧87%
IK Ratings IK07
Optional Accessories
Open Frame Brackets
ALL_catalog_24B07_zZDGvrYMqD
Cart
ALL_catalog_24B07_7EnjHDfXJZ
KIOSK
ALL_catalog_24B07_zZDGvrYMqD
Passive Stylus
ALL_catalog_24B07_7EnjHDfXJZ
Camera
ALL_catalog_24B07_zZDGvrYMqD
Can be mounted horizontally or vertically
