| Features |
|---|
★ 32 inch Industrial Grade Panel, 1920x1080 (FHD) Resolution
★ VA Wide Viewing Angle Technology (178°/178°)
★ 1500/2500nits High Brightness (Optional)
★ True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch , Supports Active Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ Optional Video Input (VGA/DVI/HDMI/DP)
★ Optional Software Remote Control by RS232
★ Optional Auto Dimming Function (with Light Sensor)
| Display Specification | |
|---|---|
| Panel Process | VA Type, Normally Black |
| Display Size | 32 inch |
| Visible Area | 698.4x392.9 mm |
| Resolution | 1920x1080 (FHD) |
| Display Ratio | 16:9 |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 1500 / 2500 nits (Optional) |
| Contrast Ratio | 4000:1 |
| Pixel Pitch |
0.3638x0.1213 mm (1500nits) 0.3637x0.3637 mm (2500nits) |
| Response Time | 8 msec. |
| Viewing Angle | 178°/178° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >50000 HRS |
| Operating Temp. | 0°~50°C |
| Storage Temp. | -20°~60°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 2.9±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|
Open Frame Brackets |

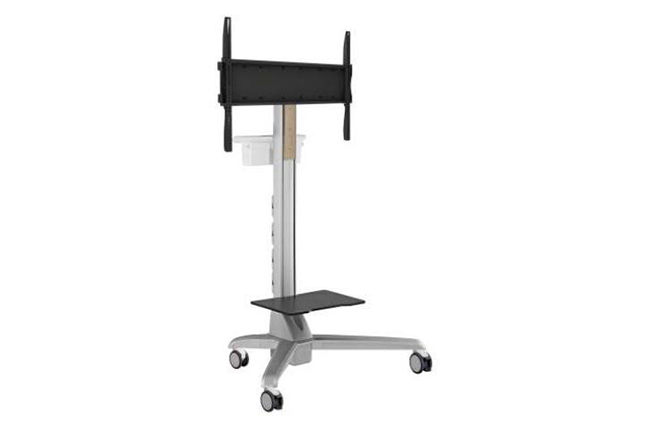

Cart |
KIOSK |

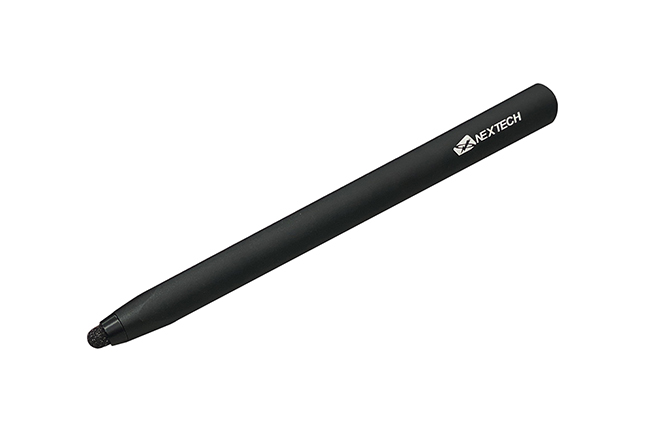

Passive Stylus |
IP65 Waterproof Protection Front Frame |
Open Frame Brackets |
