| Features |
|---|

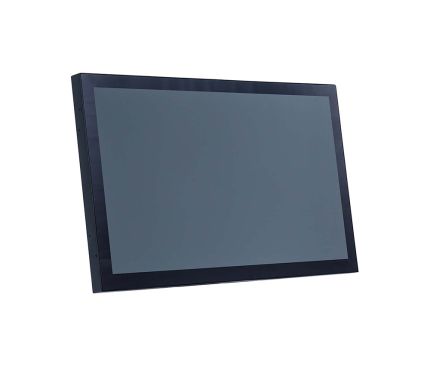

★ 17.3 inch Industrial Grade Panel, 1920x1080 (FHD) Resolution
★ Wide Operating Temperature Range 0~70℃
★ True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports NEXTECH Dedicated Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ VGA/HDMI/DP Video Input
★ Optional Software Remote Control by RS232 or DDC/CI
★ 10 points Multi-touch, Supports NEXTECH Dedicated Stylus
★ Optional 9~36VDC Power Input
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional Auto Dimming Function (with Light Sensor)
★ Optional AG Coating/Antibacterial/Privacy Filter Surface Treatment
| Display Specification | |
|---|---|
| Panel Process | TN, Normally White |
| Display Size | 17.3 inch |
| Visible Area | 381.9x214.8 mm |
| Resolution | 1920x1080 (FHD) |
| Display Ratio | 16:9 |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 1000 / 1500 nits (Optional) |
| Contrast Ratio | 600:1 |
| Pixel Pitch | 0.1989x0.1989 mm |
| Response Time | 40 msec. |
| Viewing Angle | 160°/140° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >50000 HRS |
| Operating Temp. | 0°~70°C |
| Storage Temp. | -20°~70°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 2.9±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|
Open Frame Brackets |
IP65 Waterproof Protection Front Frame |
Desktop Stand B type |
Desktop Stand Z type |
Wall Mount Bracket |
Passive Stylus |
Panel Mount Kits |
 |
