products

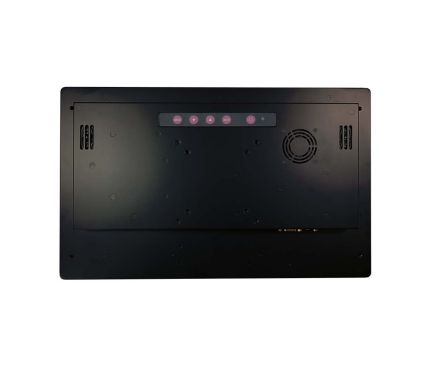

P Series 17.3" PCAP Touch Monitor

Share:
Features

★ 17.3 inch Industrial Grade Panel, 1920x1080 (FHD) Resolution
★ Wide Operating Temperature Range 0~70℃
★ True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports NEXTECH Dedicated Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ VGA/HDMI/DP Video Input
★ Optional Software Remote Control by RS232 or DDC/CI
★ 10 points Multi-touch, Supports NEXTECH Dedicated Stylus
★ Optional 9~36VDC Power Input
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional Auto Dimming Function (with Light Sensor)
★ Optional AG Coating/Antibacterial/Privacy Filter Surface Treatment


Display Specification
Panel Process TN, Normally White
Display Size 17.3 inch
Visible Area 381.9x214.8 mm
Resolution 1920x1080 (FHD)
Display Ratio 16:9
Color Depth 16.7M Colors
Brightness (nits) 450 / (Optional) 1000 / (Optional) 1500 nits
Contrast Ratio 600:1
Pixel Pitch 0.1989x0.1989 mm
Response Time 40 msec.
Viewing Angle 160°/140°
Backlight LED (white LED)
Backlight Lifetime >50000 HRS
Operating Temp. 0°~70°C
Storage Temp. -20°~70°C
Touch Specification
Touch Technology Projected Capacitive
Allowed Touch Points 10 points
Thickness of Cover Lens  2.9±0.2mm
Hardness of Cover Lens 7H
Accuracy 99.00%
Transparency ≧87%
IK Ratings IK07
Optional Accessories
Open Frame Brackets
ALL_catalog_24B07_zZDGvrYMqD
IP65 Waterproof Protection Front Frame
ALL_catalog_24B07_7EnjHDfXJZ
Desktop Stand B type
ALL_catalog_24B07_zZDGvrYMqD
Desktop Stand Z type
ALL_catalog_24B07_7EnjHDfXJZ
Wall Mount Bracket
ALL_catalog_24B07_zZDGvrYMqD
Passive Stylus
ALL_catalog_24B07_7EnjHDfXJZ
Panel Mount Kits
ALL_catalog_24B07_zZDGvrYMqD

ALL_catalog_24B07_7EnjHDfXJZ
