| Features |
|---|

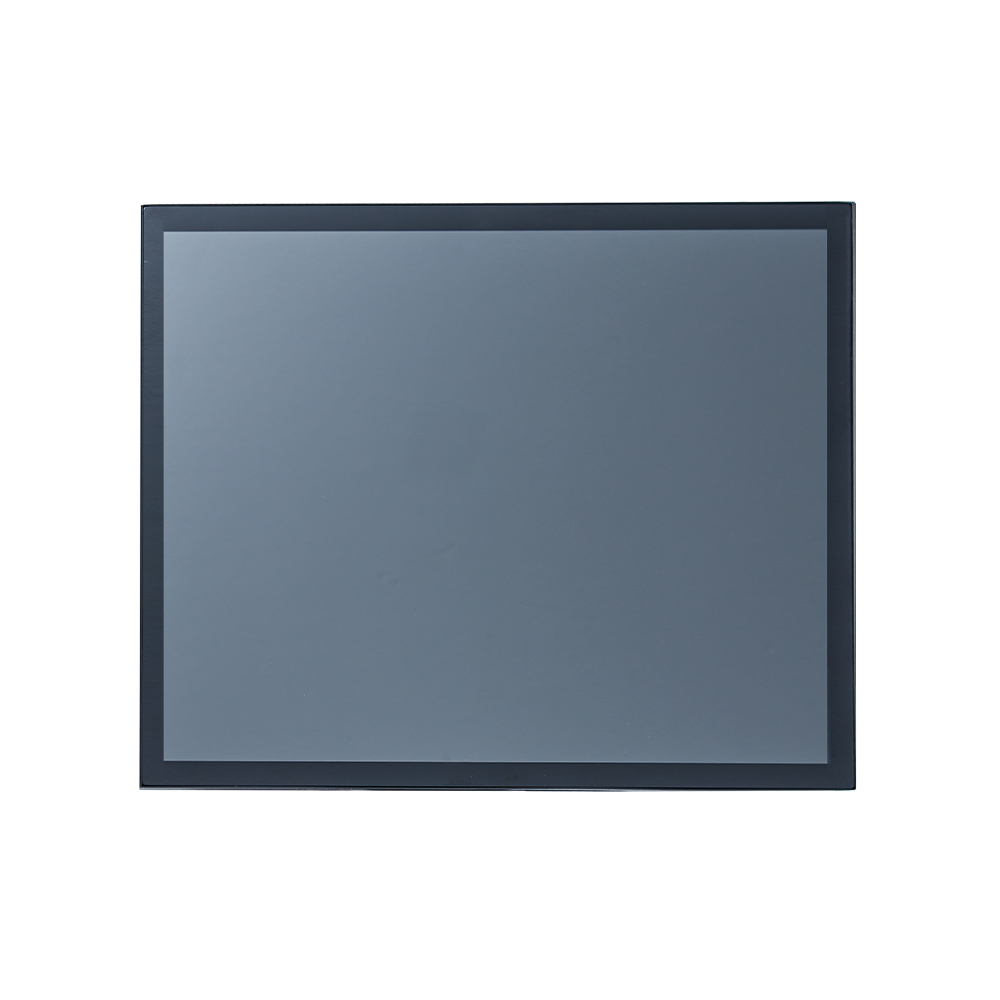

★ 15 inch Industrial Grade Panel, 1024x768 Resolution
★ IAV Wide Viewing Angle Technology , 176°/176°
★ Operating Temperature Range -30~80°C
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports NEXTECH Dedicated Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ VGA/HDMI/DP Video Input
★ Optional Software Remote Control by RS232 or DDC/CI
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional Auto Dimming Function (with Light Sensor)
★ Optional AG Coating/Antibacterial/Privacy Filter Surface Treatment
| Display Specification | |
|---|---|
| Panel Process | IAV Mode, Normally Black |
| Display Size | 15 inch |
| Visible Area | 304.1x228.1 mm |
| Resolution | 1024x768 (XGA) |
| Display Ratio | 4:3 |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 1000 / 1500 nits (Optional) |
| Contrast Ratio | 1000:1 |
| Pixel Pitch | 297x297 um |
| Response Time | 25 msec. |
| Viewing Angle | 176°/176° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >70000 HRS |
| Operating Temp. | -30°~80°C |
| Storage Temp. | -40°~85°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 1.8±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|
Open Frame Brackets |
IP65 Waterproof Protection Front Frame |
Desktop Stand B type |
Desktop Stand L type |
Wall Mount Bracket |
Passive Stylus |
Panel Mount Kits |
 |
