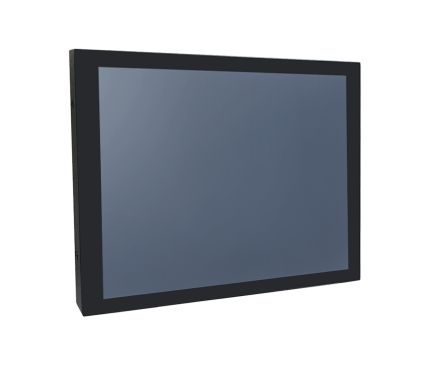

P Series 10.4" High Brightness PCAP Touch Monitor

Share:
Features

★ 10.4 inch Industrial Grade Panel, 1024x768 Resolution
★ IAV Wide Viewing Angle Technology , 176°/176°
★ Wide Operating Temperature (-30~85°C)
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports NEXTECH Dedicated Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ Optional Video Input (VGA/DVI/HDMI/DP)
★ Optional Software Remote Control by RS232 or DDC/CI
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional Auto Dimming Function (with Light Sensor)
★ Optional AG Coating/Antibacterial/Privacy Filter Surface Treatment


Display Specification
Panel Process IAV Mode, Normally Black
Display Size 10.4 inch
Visible Area 210.4x157.8 mm
Resolution 1024x768 (XGA)
Display Ratio 4:3
Color Depth 16.2M Colors
Brightness (nits) 1000 /  1500 nits (Optional)
Contrast Ratio 1000:1
Pixel Pitch 0.0685x0.2055 mm
Response Time 25 msec.
Viewing Angle 176°/176°
Backlight LED (white LED)
Backlight Lifetime >50000 HRS
Operating Temp. -30°~85°C
Storage Temp. -30°~85°C
Touch Specification
Touch Technology Projected Capacitive
Allowed Touch Points 10 points
Thickness of Cover Lens  1.8±0.2mm
Hardness of Cover Lens 7H
Accuracy 99.00%
Transparency ≧87%
IK Ratings IK07
Optional Accessories
Open Frame Brackets
ALL_catalog_24B07_zZDGvrYMqD
IP65 Waterproof Protection Front Frame
ALL_catalog_24B07_7EnjHDfXJZ
Desktop Stand B type
ALL_catalog_24B07_zZDGvrYMqD
Desktop Stand L type
ALL_catalog_24B07_7EnjHDfXJZ
Wall Mount Bracket
ALL_catalog_24B07_zZDGvrYMqD
Passive Stylus
ALL_catalog_24B07_7EnjHDfXJZ
Panel Mount Kits
ALL_catalog_24B07_zZDGvrYMqD

ALL_catalog_24B07_7EnjHDfXJZ
