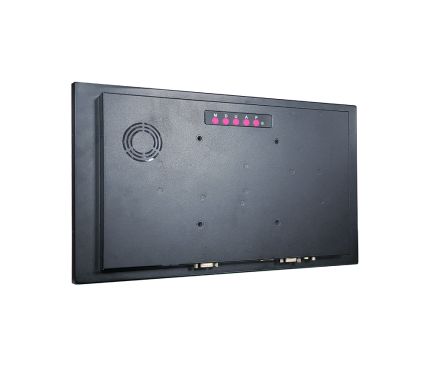

M Series 15.6" High Brightness Industrial Monitor

Share:
Features

★ 15.6 inch Industrial Grande Panel, 1920x1080 (FHD) Resolution
★ AHVA Wide Viewing Angle Technology (178°/178°)
★ Wide Operating Temperature Range -20~70℃
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ Resistive/Capacitive Touch Options
★ Optional Video Input (VGA/HDMI/DP)
★ Optional Software Remote Control by RS232 or DDC/CI
★ Optional 9~36VDC Power Input
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional Auto Dimming Function (with Light Sensor)
★ Optional AG Coating/Antibacterial/Privacy Filter Surface Treatment


Display Specification
Panel Process AHVA, Normally Black
Display Size 15.6 inch
Visible Area 344.2x193.6 mm
Resolution 1920x1080 (FHD)
Display Ratio 16:9
Color Depth 16.7M Colors
Brightness (nits) 1000 / 1500 nits (Optional)
Contrast Ratio 1000:1
Pixel Pitch 0.17925x0.17925 mm
Response Time 25 msec.
Viewing Angle 178°/178°
Backlight LED (white LED)
Backlight Lifetime >50000 HRS
Operating Temp. -20°~70°C
Storage Temp. -20°~70°C

Optional Accessories
Open Frame Brackets
ALL_catalog_24B07_zZDGvrYMqD
Panel Mount Kits
ALL_catalog_24B07_7EnjHDfXJZ
Desktop Stand B type
ALL_catalog_24B07_zZDGvrYMqD
Desktop Stand L type
ALL_catalog_24B07_7EnjHDfXJZ
Wall Mount Bracket
ALL_catalog_24B07_zZDGvrYMqD

ALL_catalog_24B07_7EnjHDfXJZ
