| Features |
|---|
★ 12.1 inch Industrial Grade Panel, 1024x768 Resolution
★ IAV Wide Viewing Angle Technology, 178°/178°
★ Wide Operating Temperature Range -30~ 85℃
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty , Designed for Harsh Environments
★ Resistive/Capacitive Touch Options, Supports NEXTECH Exclusive Stylus
★ Optional Video Input (VGA/DVI/HDMI/DP)
★ Optional Software Remote Control by RS232 or DDC/CI
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional Auto Dimming Function (with Light Sensor)
★ Optional AG Coating/Antibacterial/Privacy Filter Surface Treatment
| Display Specification | |
|---|---|
| Panel Process | IAV Mode, Normally Black |
| Display Size | 12.1 inch |
| Visible Area | 245.76x184.32 mm |
| Resolution | 1024x768 (XGA) |
| Display Ratio | 4:3 |
| Color Depth | 1.67M Colors |
| Brightness (nits) | 600 / (Optional) 1000 / (Optional) 1500 nits |
| Contrast Ratio | 1000:1 |
| Pixel Pitch | 0.240x0.240 mm |
| Response Time | 25 msec. |
| Viewing Angle | 178°/178° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >50000 HRS |
| Operating Temp. | -30°~85°C |
| Storage Temp. | -40°~90°C |
| Touch Specification | |
|---|---|
| Touch Technology | Resistive Touch |
| Allowed Touch Points | Single point |
| Interface | USB/RS232 |
| Hardness | ≧3H |
| Precision | 98.50% |
| Transparency | 80%±5% |
| Surface Treatment | Anti glare<15% |
| Optional Accessories | |
|---|---|
Open Frame Brackets |

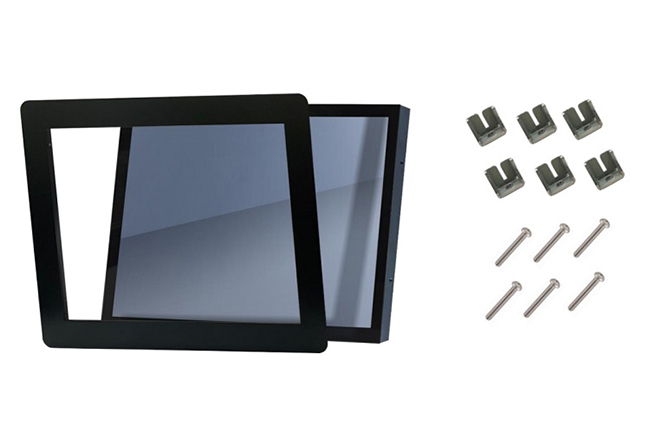

Panel Mount Kits |
Desktop Stand B type |
Desktop Stand L type |
Wall Mount Bracket |
Passive Stylus |
