OD Series 19" Industrial Waterproof Touch Monitor

Share:
Features

★ 19 inch Industrial Grade Panel, 1280x1024 Resolution
★ Operating Temperature Range -30~85°C
★ IP68/69K Level Waterproof Enclosure
★ Stainless Steel Cabinet
★ AG Coating Surface Treatment
★ HDMI Video Input
★ Optional Resistive/Capacitive Touch Options
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional Auto Dimming Function (with Light Sensor)
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments


Display Specification
Panel Process TN Type, Normally White
Display Size 19 inch
Visible Area 376.3x301.1 mm
Resolution 1280x1024
Display Ratio 4:3
Color Depth 16.7M Colors
Brightness (nits) 350 / (Optional) 1000 / (Optional) 1500 nits
Contrast Ratio 1000:1
Pixel Pitch 0.294x0.294 mm
Response Time 10 msec.
Viewing Angle 170°/160°
Backlight LED (white LED)
Backlight Lifetime >50000 HRS
Operating Temp. -30°~85°C
Storage Temp. -30°~85℃
Touch Options (Projected Capacitive)
Technology Projected Capacitive Transparency ≧87%
Allowed Touch Points 10 points Surface Treatment AG Coating
Interface USB Thickness of Cover Lens 2.0±0.2mm
IK Ratings IK07 Hardness of Cover Lens 7H
Touch Options (Resistive)
Technology Resistive Transparency 80%±5%
Allowed Touch Points Single point Surface Treatment AG Coating
Interface USB Hardness of Cover Lens ≧3H
Optional Accessories

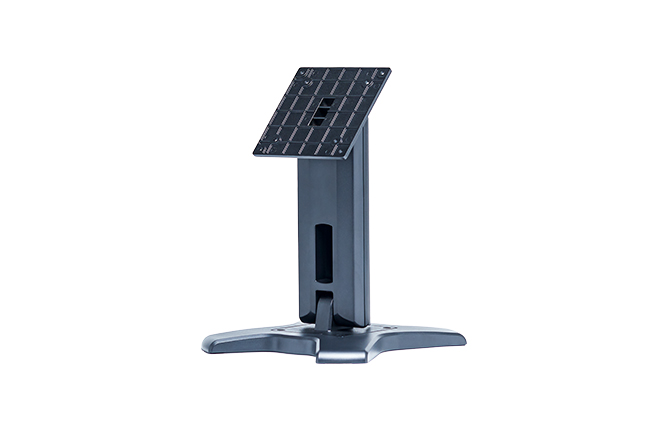

Desktop Stand B type
ALL_catalog_24B07_zZDGvrYMqD
Wall Mount Bracket
ALL_catalog_24B07_7EnjHDfXJZ
