OD Series 15" Industrial Waterproof Touch Monitor

Share:
Features

★ 15 inch Industrial Grade Panel, 1024x768 Resolution
★ IAV Wide Viewing Angle Technology , 176°/176°
★ Operating Temperature Range -30~80°C
★ IP68/69K Level Waterproof Enclosure
★ Stainless Steel Cabinet
★ AG Coating Surface Treatment
★ HDMI Video Input
★ Optional Resistive/Capacitive Touch Options
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional Auto Dimming Function (with Light Sensor)
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments


Display Specification
Panel Process IAV Mode, Normally Black
Display Size 15 inch
Visible Area 304.1x228.1 mm
Resolution 1024x768
Display Ratio 4:3
Color Depth 16.7M Colors
Brightness (nits) 500 / (Optional) 1000 / (Optional) 1500 nits
Contrast Ratio 2500:1
Pixel Pitch 297x297 um
Response Time 18 msec.
Viewing Angle 176°/176°
Backlight LED (white LED)
Backlight Lifetime >70000 HRS
Operating Temp. -30°~80°C
Storage Temp. -40°~85℃
Touch Options (Projected Capacitive)
Technology Projected Capacitive Transparency ≧87%
Allowed Touch Points 10 points Surface Treatment AG Coating
Interface USB Thickness of Cover Lens 2.0±0.2mm
IK Ratings IK07 Hardness of Cover Lens 7H
Touch Options (Resistive)
Technology Resistive Transparency 80%±5%
Allowed Touch Points Single point Surface Treatment AG Coating
Interface USB Hardness of Cover Lens ≧3H
Optional Accessories
Desktop Stand B type
ALL_catalog_24B07_zZDGvrYMqD

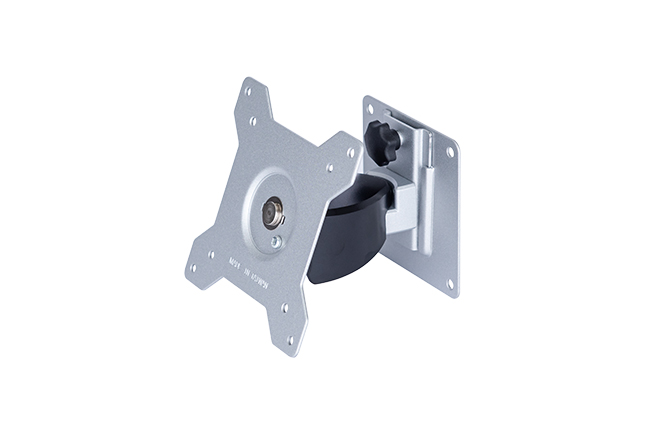

Wall Mount Bracket
ALL_catalog_24B07_7EnjHDfXJZ
