| Features |
|---|
★ 19/23.8/24/27-inches aspect ratio available
★ P-CAP Multi-Touch, High Brightness and Optical Bonding (by request)
★ AC/DC Multi-Power by default (Single power by request)
★ Buzzer is available on front bezel and controlled via comm. protocol
★ Comm. protocol is supported via RS port
★ 3 Years warranty, Fast Lead Time and Price/Cost-Optimization
★ Marine type approval: IEC60945, IACS UR E10 and IEC61174 (ECDIS Color Calibrated model by request)
| Specification | |
|---|---|
| Viewable Size | 23.8 inch |
| Active Area (mm) | 527.04 H x 296.46V |
| Native Resolution | 1920 x 1080 (FHD) |
| Aspect Ratio | 16:9 |
| Light Intensity | 250 cd/m² |
| Contrast Ratio | 1000:1 |
|
Viewing Angles (U/D/L/R) |
89 degrees |
| Optimal Resolution and Hz | 1920 x 1080 @ 60 Hz |
|
ECDIS Color Calibrated (Optional) |
Available |
| Touch Function (Optional) | P-CAP Touch |
| High Brightness (Optional) | 1000 cd/m² |
| Optical Bonding (Optional) | Available |
| Video Input |
1 DVI-I 1 DP 1 USB-C |
| Input/Output Interface |
1 RS232 1 RS422/485 1 USB (For touch) 1 COM (External I/O) |
| Power Specifications and Consumption | Multi-power 100-240V AC - 50/60Hz + 24V DC, 156W (max) |
| User Controls and Activity |
1 x Power On/Off 1 x ECDIS LED 1 x MENU 1 x ENTER 1 x PLUS, 1 x MINUS |
| Dimensions (W x H x D, mm) | 593x384x71 |
| Weight (approx.) | 9.0 KG |
| Operating Temperature | -15.0°C to +55.0°C |
| Storage Temperature | -30.0°C to +70.0°C |
| Humidity | Humidity up to 95% |
| IP Rating |
IP66 front IP22 rear |
| Compass Safety Distance |
Standard: 140cm Steering: 85cm
|
| Type Approval, Testing and Certificates |
IEC60945 IACS-UR-E10 EU-RO-MR by DNV |
| Optional Accessories | |
|---|---|
VESA 75/100 Mounting Kit |

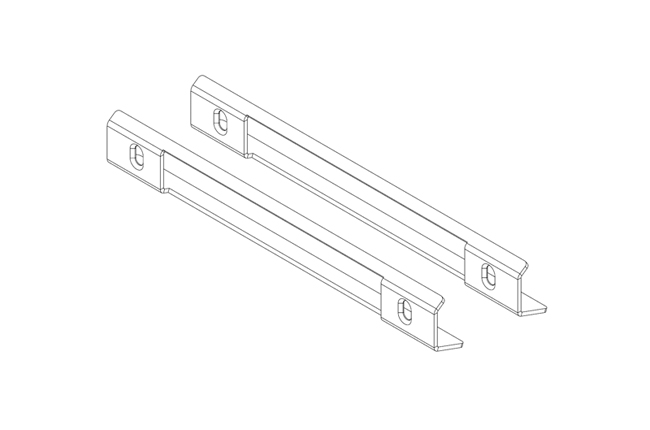

Panel Mounting Kit (4 pcs for 4 side) |
Desktop Mounting Kit |
Console Mounting Kit |
