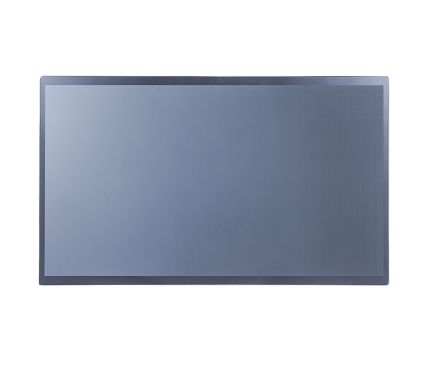

27" Panel PC (Android RK3399)

Share:
Features

★ 27 inch Panel, 1920x1080 (FHD) Resolution
★ VA Wide Viewing Angle Technology (178°/178°)
★ Rock Chip ARM Cortex A72+A53 RK3399 Quad-Core CPU
★ On Board DDR4 4G Memory
★ On Board 32 Flash ROM
★ Micro SD Card Slot x1
★ Android 11
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports NEXTECH Dedicated Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty
★ Optional High Brightness 1000nits, for Outdoor Environment
★ Optional AG Coating/Anti-UV/Antibacterial/Privacy Filter Surface Treatment


System Specifications
CPU Dual Core ARM Cortex-A72 +Cortex-A53 up to 2.0GHz
Memory DDR4 4G
Storage 32G Flash ROM
Sound Chip Everest ES8336 Codec
Physical Network Realtek GbE LAN Chip (RJ45, 10/100/1000 Mbps)
Wireless Network Wi Fi 2.4/5GHz and Bluetooth 4.2 (support BLE)
OS Android 11
Display Specification
Panel Process VA Type, Normally Black
Display Size

27 inch

Visible Area 597.6x336.2 mm
Resolution 1920x1080 (FHD)
Color Depth 16.7M Colors
Brightness (nits) 250 / (Optional) 1000 nits
Contrast Ratio 3000:1
Display Ratio 16:9
Pixel Pitch 264x264 um
Response Time 5 msec.
Viewing Angle 178°/178°
Backlight LED (white LED)
Backlight Lifetime >30000 hours
Operating Temp. 0°~50°C
Storage Temp. -20°~60°C
Touch Specification
Touch Technology Projected Capacitive
Allowed Touch Points 10 points
Thickness of Cover Lens  2.9±0.2mm
Hardness of Cover Lens 7H
Accuracy 99.00%
Transparency ≧87%
IK Ratings IK07
Optional Accessories
Open Frame Brackets
ALL_catalog_24B07_J38uIagPRd
Wall Mount Kits
ALL_catalog_24B07_QSal7cfUvr
IP65 Waterproof Protection Front Frame
ALL_catalog_24B07_eZj5vSxbi4
Wall Mount Bracket
ALL_catalog_24B07_JBcA4klMlI
Desktop Stand B type
ALL_catalog_24B19_9VHYTHbtZM
Desktop Stand Z type
ALL_catalog_24B19_N2Ak4o05Tt
Passive Stylus
ALL_catalog_24B19_9VHYTHbtZM

ALL_catalog_24C01_E9woJAMIbM
