| Features |
|---|
★ 19 inch Industrial Grade Panel, 1280x1024 Resolution
★ Wide Operating Temperature Range -30~85℃
★ Rock Chip ARM Cortex A17 RK3288 Quad-Core 1.8GHz CPU
★ On Board DDR3-1333 2G RAM (Max. upgraded to 4G)
★ On Board 8G Flash ROM (Max. upgraded to 32G)
★ Micro SD Card Slot x1 (Max. to 64G)
★ Android 9.0
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports NEXTECH Dedicated Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional AG Coating/Antibacterial/Privacy Filter Surface Treatment
| System Specifications | |
|---|---|
| CPU | Rock Chip ARM Cortex A17 RK3288 Quad-Core 1.8GHz |
| Memory | DDR3 2G |
| Storage | 8G Flash ROM (Max. to 32G) |
| GPU Chip | Mali T764 GPU |
| Sound Chip | ES8316 2 Channel HD Audio |
| Physical Network | 1x GbE Lan port (RJ45) |
| Wireless Network | IEEE 802.11b/g/n 2.4G WIFI and Blue Tooth v2.1+EDR/V3.0/V3.0+HS/V4.0 |
| OS | Android 10.0 |
| Display Specification | |
|---|---|
| Panel Process | TN Type, Normally White |
| Display Size |
17 inch |
| Visible Area | 376.3x301.1 mm |
| Resolution | 1280x1024 |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 350 / (Optional) 1000 / (Optional) 1500 nits |
| Contrast Ratio | 1000:1 |
| Display Ratio | 4:3 |
| Pixel Pitch | 0.294x0.294 mm |
| Response Time | 10 msec. |
| Viewing Angle | 170°/160° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >50000 hours |
| Operating Temp. | -30°~85°C |
| Storage Temp. | -30°~85°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 1.8±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|
Open Frame Brackets |
Wall Mount Kits |
IP65 Waterproof Protection Front Frame |
Wall Mount Bracket |

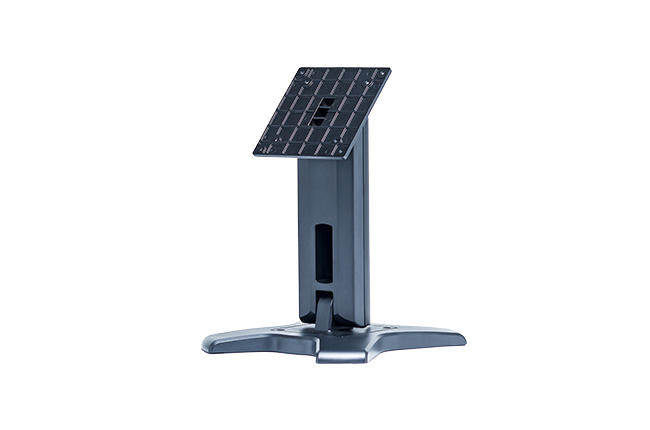

Desktop Stand B type |

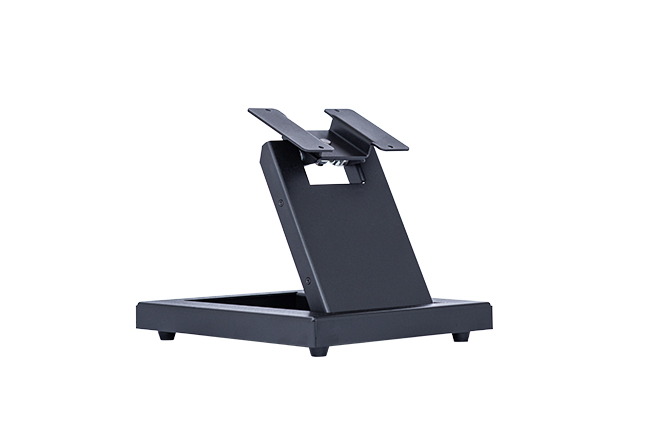

Desktop Stand Z type |
Passive Stylus |
 |
