| Features |
|---|
★ 10.1 inch Wide Screen Industrial Grade Panel, 1280x800 Resolution
★ AHVA Wide Viewing Angle Technology , 178°/178°
★ Wide Operating Temperature Range -20~60℃
★ Rock Chip ARM Cortex A72+A53 RK3399 Quad-Core CPU
★ On Board DDR4 4G Memory
★ On Board 16G Flash ROM (Max. upgraded to 32G)
★ Micro SD Card Slot x1 (Max. to 64G)
★ Android 10.0
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports Active Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ Optional AG Coating/Antibacterial/Privacy Filter Surface Treatment
| System Specifications | |
|---|---|
| CPU | Dual Core ARM Cortex-A72 +Cortex-A53 up to 2.0GHz |
| Memory | Samsung LPDDR4 4G |
| Storage | Samsung 16G EMMC Flash ROM (Max. to 32G) |
| GPU Chip | Mali T864 GPU |
| Sound Chip | Realtek ALC662 Audio CODEC |
| Physical Network | 1x GbE Lan port (RJ45) |
| Wireless Network | Wi-Fi 6 and Blue Tooth v2.1+EDR/V3.0/V3.0+HS/V4.0 |
| OS | Android 10.0 |
| Power Input | 12VDC-in, with AC/DC Adapter |
| Display Specification | |
|---|---|
| Panel Process | AHVA Mode, Normally White |
| Display Size |
10.1 inch |
| Visible Area | 216.96x135.6 mm |
| Resolution | 1280x800 |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 400 nits |
| Contrast Ratio | 800:1 |
| Display Ratio | 16:10 |
| Pixel Pitch | 0.1695x0.1695 mm |
| Response Time | 29 msec. |
| Viewing Angle | 178°/178° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >30000 hours |
| Operating Temp. | -20°~60°C |
| Storage Temp. | -20°~60°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 1.1±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|
Open Frame Brackets |
IP65 Waterproof Protection Front Frame |
Desktop Stand L type |
Desktop Stand B type |
Desktop Stand Z type |

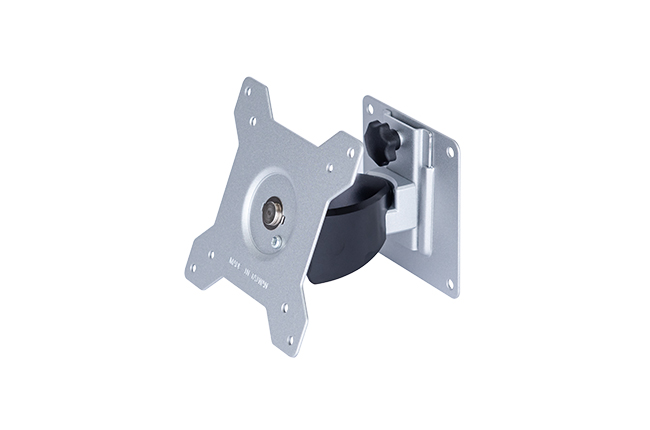

Wall Mount Bracket |
