| Features |
|---|

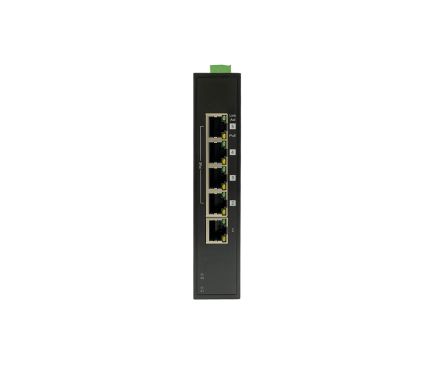

★ 5 Port Industrial Unmanaged PoE+ Gigabit Ethernet Switch
★ 5x 10/100/1000T(x) with 4x 30W PSE
★ 1 x GbE/10GbE LAN port
| Technology | Description |
|---|---|
| Standards |
IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at PoE+ |
| Processing Type | Store and Forward |
| Switch Properties | Description | Switch Properties | Description |
|---|---|---|---|
| Switch Fabric | 10Gbps | MAC Table Size | 2K |
| Priority Queues | - | Packet Buffer | 1Mbits |
| Interface | Description | ||||
|---|---|---|---|---|---|
| RJ45 Port | 5x 10/100/1000T(x) with 4x 30W PSE +, auto negotiation speed duplex mode, auto MDI/MDI X | ||||
| PoE Pin Out | V+, V+, V --, V --, for pin 1, 2, 3, 6, Endspan, MDI Mode A | ||||
| LED Indicators | Per unit | PWR1, PWR2 | |||
| Ports | Link (Green) | ||||
| PoE | Output Power | ||||
| Power Requirements | Description |
|---|---|
| Operation Voltage |
48 57VDC, redundant dual inputs, 50VDC for PoE+ output recommended
|
| Connection | 1x removable 4 contact terminal block |
| Power Consumption | 0.02A@48VDC without PDs' consumption |
| PoE Power Budget | 120W |
| Protection | Overload Current Protected, Reverse Polarity Protected |
| Mechanical Construction | Description | Mechanical Construction | Description |
|---|---|---|---|
| Enclosure | SECC | Protection Class | IP30 |
| Weight | 0.7 kg | Mounting | DIN Rail Mounting |
| Dimensions | 29W x 140H x 98D mm |
| Environmental Limits | Description |
|---|---|
| Operating Temperature |
-40°C ~ 75°C (-40°F ~ 167°F) |
| Storage Temperature | ‐40°C ~ 85°C (‐40°F ~ 185°F) |
| Ambient Relative Humidity | 5 to 95%, (Non‐Condensing) |
| Regulatory Approvals | Description | |
|---|---|---|
| EMI |
FCC Part 15 Subpart B Class A CE EN 55032 Class A |
|
| EMS | IEC61000‐4‐2 (ESD) IEC61000‐4‐3 (RS IEC61000‐4‐4 (EFT) |
IEC61000‐4‐5 (Surge) IEC61000‐4‐6 (CS) IEC61000‐4‐8 (Magnetic Field) |
| Free Fall | IEC60068-2-32 | |
| Shock | IEC60068-2-27 | |
| Vibration | IEC60068-2-6 | |
| Product Specifications |
|---|
| NTIOT-CM-ES-UM-05-P-T English Version |
