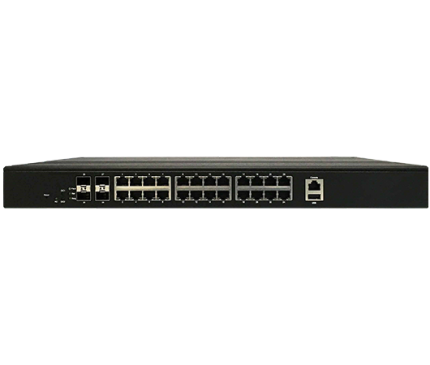

| Features |
|---|
★ 24x Gigabit Ethernet ports with IEEE 802.3at PoE+
★ 4x 1/10 Gigabit Ethernet SFP+ Slot
★ Built for harsh environments and wide temperature range application
★ RSTP, MSTP, ERPS, LACP for Network Redundancy
★ QoS CoS/DSCP to increase determinism
★ Supports IGMP Snooping v1/v2/v3, up to 512 groups
★ DHCP Relay Option 82 for policies IP address assignment
★ SNMP v1/v2c/v3 for network management
★ Supports Storm Protection
★ USB storage for configuration free replacement
★ Supports industrial automation protocols Ethernet/IP and Modbus TCP
★ Supports PoE PD Alive Check Function for PoE Device Power Recycle
| Technology | Description |
|---|---|
| Standards |
IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3ae 10GBase over Fiber IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at PoE+ IEEE 802.3ad/802.1AX LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid STP IEEE 802.1s Multiple STP ITU‐T G.8032 Y.1344 ERPS IEEE 802.1Q VLAN Tagging IEEE 802.1ad Stacked VLANs IEEE 802.1p Class of Service IEEE 802.1X Network Authentication IEEE 802.1AB LLDP IEEE 1588 PTP
|
| Processing Type | Store and Forward |
| Switch Properties | Description | Switch Properties | Description |
|---|---|---|---|
| Switch Fabric | 32Gbps | Packet Buffer | 8K |
| Priority Queues | 8 Queues | VLAN Table Size | 4094 |
| Jumbo Frame | 9216bytes | IGMP Group |
512 |
| MAC Table Size | 16K | ACL Group | 512 |
| Software Feature | Description | ||||
|---|---|---|---|---|---|
| Network Redundancy | RSTP, MSTP, G.8032 ERPSv2, Port Trunking with LACP | ||||
| Security | 802.1X, RADIUS, TACACS+, SSL, SSH | ||||
| Management | IPv4, IPv6, Web, Telnet, Serial Console, CLI, SNMP v1/v2c/v3, uPnP | ||||
| Diagnostics | RMON, SNMP Inform/Trap, Syslog, SMTP, Port Mirroring, LLDP | ||||
| Configuration | DHCP Server/Client, Relay Option 82, TFTP, USB | ||||
| Filter | 802.1Q VLAN, Q‐in‐Q, IGMP Snooping v1/v2/v3, IGMP Querier, Independent Vlan Learning | ||||
| Time Sync. | NTP, IEEE1588v2 OC (Software Timestamp), TC (Hardware Timestamp) | ||||
| QoS | CoS, DSCP, WRR/SPQ Queuing, Storm Protection | ||||
| PoE | Powering Status, PoE Monitoring, Scheduling, PD Alive Check | ||||
| Industrial Profiles | Ethernet/IP, Modbus TCP | ||||
| Interface | Description | ||||
|---|---|---|---|---|---|
| RJ45 Port | 24x 10/100/1000T(x) with 30W PSE + 4x 1/10 Gigabit Ethernet SFP+ Slot | ||||
| Fiber Port | 4x 1/10 Gigabit Ethernet SFP+ Slot | ||||
| PoE Pin Out | V+, V+, V‐, V‐, for pin 1, 2, 3, 6, Endspan, MDI Mode A | ||||
| LED Indicators | Per unit | PWR1, PWR2(AC2/DC2), Fault, Ring Master, Ring State | |||
| Ports | Link/Active with highest speed (Green), low speed (Amber) | ||||
| PoE | Output Power | ||||
| Alarm Contact | 1x relay output with current carrying capacity of 1A 24 VDC | ||||
| Digital Inputs | 1x isolated input from the electronics. +13 to +30V for state " ‐30 to +3V for state " 0", Max. input current: 8mA |
||||
| Button | Multiple functions reset button | ||||
| Serial Console | 1x RS232 in RJ45 connector with console cable, 115.2Kbps, 8N1 | ||||
| Storage | 1x USB 2.0 storage for firmware update, configuration backup, restore, boot up and syslog | ||||
| Power Requirements | Description |
|---|---|
| Operation Voltage |
90~264VAC, 48~57VDC, redundant dual inputs >50VDC for PoE+ output recommended
|
| Connection | 1x 90~264VAC Power and 1x 48~57VDC Power Input |
| Power Consumption | 0.45A@48VDC; 0.33A@110VAC without PDs' consumption |
| PoE Power Budget | Max. 377W@AC with derating (50°C to 70°C, 2.5%/°C) or 720W@DC, for total PD consumption, Max. 30 W per PoE port |
| Protection | Overload Current Protected, Reverse Polarity Protected |
| Mechanical Construction | Description | Mechanical Construction | Description |
|---|---|---|---|
| Enclosure | Metal casting | Mounting | DIN Rail Mounting |
| Weight | 0.5 kg | Dimensions | 45W x 136H x 95D mm |
| Protection Class | IP30 |
| Environmental Limits | Description |
|---|---|
| Operating Temperature |
Standard: ‐20°C ~ 60°C (-4°F ~ 140°F) |
| Storage Temperature | ‐40°C ~ 85°C (‐40°F ~ 185°F) |
| Ambient Relative Humidity | 5 to 95%, (Non‐Condensing) |
| Regulatory Approvals | Description | |
|---|---|---|
| EMI |
FCC Part 15 Subpart B Class A CE EN 55032 Class A |
|
| EMS | IEC61000‐4‐2 (ESD) IEC61000‐4‐3 (RS IEC61000‐4‐4 (EFT) |
IEC61000‐4‐5 (Surge) IEC61000‐4‐6 (CS) IEC61000‐4‐8 (Magnetic Field) |
| Free Fall | IEC60068-2-32 | |
| Shock | IEC60068-2-27 | |
| Vibration | IEC60068-2-6 | |
| Green | RoHS Compliant | |
| Certifications | IEC 61000-6-2 , IEC 61000-6-4 | |
| MTBF | >100,000 hours | |
| Warranty | 5 Years | |
| Product Specifications |
|---|
| NTIOT-CM-ES-M-2404-T English Version |
